PowerWall 5kwh 51.2v 100ah Lithium Ions Battery 48v 50ah 100ah Lifepo4 Pack Power Wall Solar Energy Storage Battery

Specification	Battery Module	Battery Module	Powerwall
Model	51.2V 100AH	LFP 48V 50Ah	LFP 48V 100Ah
Nominal Capacity [Ah]	100AH	50Ah	100Ah
Nominal Energy [kWh]	5.12kwh	2.4kWh	5.12kWh
Nominal Voltage [V]	51.2V (Working Voltage 45~57V)	48VDC (Working Voltage 45~57V)
Max. Charge/Discharge Current	75A	50A	75A
Net Weight	50KG(110IBS)	22kg (48.5 lbs)	50kg (110 lbs)
Life Cycles	6000+	3500+	6000+
Dimension (W*D*H)	558*545*150mm	480*360*90 mm (18.9*14.2*3.5 inch)	558*545*150 mm (21.9*21.4*5.9 inch)
Communication	CAN/RS485/RS232	CAN/RS485	CAN/RS485/RS232/DRY CONTACT
Certification & Safety Standard	TUV/CE/IEC6219/UN38.3/MSDS	TUV/CE/UN38.3/MSDS	CE/MSDS/UN38.3/TUV/EMC
Warranty	5-10 Years
Charging Temp. Range	0~55℃
Discharging Temp.Range	-20~55℃
Alarms	Overcharge/Overdischarge/Overcurrent/Overtemperature/Short Circuit
Pros	Can be used in both off-grid and hybrid setups, compact design
Compatible Inverters	Victron/SMA/Goodwe/Imeon/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye etc
OEM/ODM	Yes (Accepted)
Protection	Smart BMS protection in each Module to protect battery safety

Product details

Please contact us for more details of inverter.

Attractive Design

ERHTWONE BX51100 adopts economic design, tailor-made for residential and light commercial. Our lithium iron phosphate battery energy storage system can provide energy storage for photovoltaic power generation users through parallel combination.

Powerful Performance

Our product can store extra electricity into battery from photovoltaic power generation system in daytime and supply stable power
to user’s equipment as power backup at nighttime or any time when needed. It can improve the efficiency of photovoltaic power
generation and increase the electric power efficiency by peak load shifting.

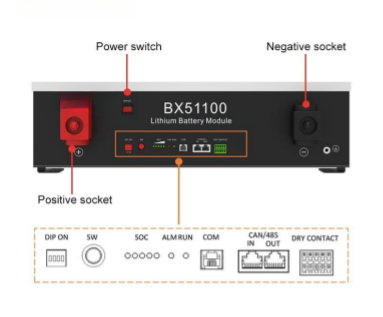

Interface Definition

This section elaborates the interface functions of the front interface of the device. It's integrated BMS communication protocol to comprehensive hybrid and off grid inverters.
