Wall Mounted Powerwall Solar Battery 10Kwh 20Kwh 48V 51.2V 100Ah 200Ah With BMS

Product Categories

guangzhou pmd technology co ltd

Contact Now

Ask Lasest Price
Price :	negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	negotiated

Add to Cart

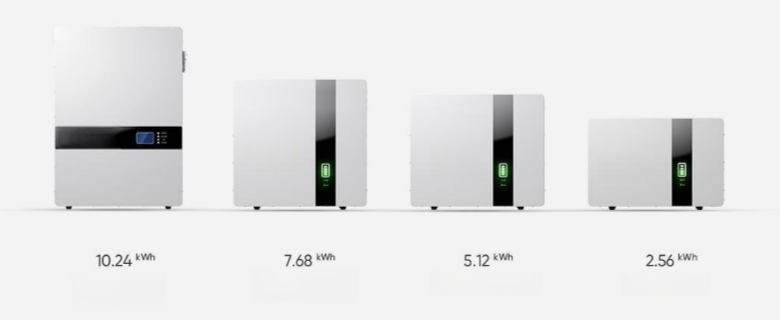

Model	2500	5000	7500	10K
Capacity Energy	2.56kWh	5.12kWh	7.68kWh	10.24kWh
Capacity Ah	50Ah	100Ah	150Ah	200Ah
Suggested SOC	10-100%
Usable Capacity	2.3kWh	4.6kWh	6.9kWh	9.2kWh
Nominal Voltage	48/51.2V
Operation Voltage	42V - 54V (48V) or 44.8V – 57.6V (51.2V)
Maximum Charging Current	35A	70A	70A	150A
Maximum Discharging Current	50A	100A	100A	200A
BMS	Robust Multi Point Monitoring BMS
Scalable(Parallel Function)	Yes, Maximum 15 Packs
Life Cycling (0.5C 25℃)	6000 Cycles @ 0.5C
Warranty	10 Years
Operation Temperature	Chrage : 0 ~ 45℃, Dischrage : -20 ~ 45℃
Storage Temperature	-20 ~ 45℃
Net Weight	29kG	52kG	66kG	92kG
Dimensions (H x W x D)	350x520x165 mm	480x520x165mm	560x537x174mm	866x537x174mm
Certifications	MSDS, UN38.3, RoHS, IEC62619, UL, CE
IP Grade	IP54
Communication	RS232, RS485, CAN (Compitable with most brand inverters in market)
