500W Lithium LiFePO4 Battery Multi Functional Lifepo4 Portable Power Bank

    Buy cheap 500W Lithium LiFePO4 Battery Multi Functional Lifepo4 Portable Power Bank from wholesalers

    Buy cheap 500W Lithium LiFePO4 Battery Multi Functional Lifepo4 Portable Power Bank from wholesalers
    • Buy cheap 500W Lithium LiFePO4 Battery Multi Functional Lifepo4 Portable Power Bank from wholesalers

    500W Lithium LiFePO4 Battery Multi Functional Lifepo4 Portable Power Bank

    Ask Lasest Price
    Price : negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : negotiated
    • Product Details
    • Company Profile

    500W Lithium LiFePO4 Battery Multi Functional Lifepo4 Portable Power Bank

    Portable Battery Pack 500W

    Nowadays, more and more people will drive to camp outdoors during the holidays, which is not only a realization of parenthood but also a relaxation. At this point, they needed a device to support their home’s travel power, and that device was portable energy storage.

    Recently, Outdoor multi-functional portable energy storage power supply market, built-in 519Wh large capacity battery pack, 110V (500W) pure string AC output, integrated USB and wireless charging and other functions, as well as a digital display screen, fully functional. The following charging head network will be dismantled in detail, let’s take a look at the design and process of the energy storage power supply.

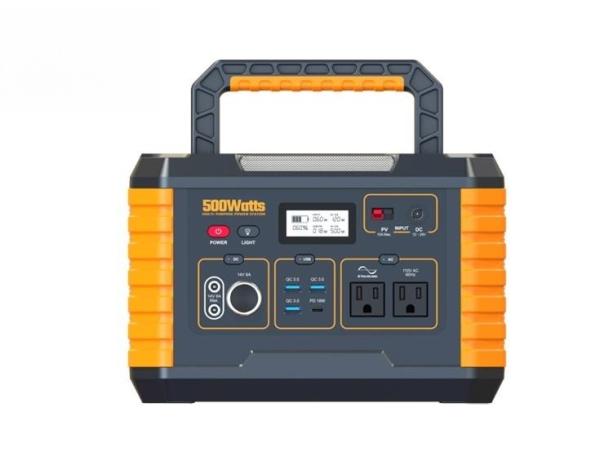

    Multi-functional portable energy storage power supply is an orange and black body, the body corners are rounded, and the surface is frosted. The front has five output ports and supports AC/USB/Type-C/ vehicle charging/wireless charging output, as well as lights, features are rich.

    Specification of battery Portable Battery Pack 500W

    TypePortable Power Station
    Rated Power500W
    Rated Capacity519Wh
    Standard Capacity3.7V/140400mAh
    Overload Protection550±40W
    AC Output110V±10%/60HZ
    Output waveformPure sine wave
    USB OutputQC3.0/18W
    Type-C OutputPD60W
    DC55*2.1 Cigarret Lighter Output14V/8A
    Wireless Charging10W
    Charging Input Voltage12-26V
    Working Temperature10-40℃
    Net weight≈6.8kg
    Gross weight≈7.8kg

    Dimension

    290*140*200mm

    Portable Power Station Techniques

    We are Specialized in technlogy development of subpackage, BMS and controls of lithium battery, power frequency conversion for discharging, and solar charging.

    BMS-7-Layer-Protection
    1. Charging disconnected when the overall voltage reaches the preset value.
    2. BMS single cell charging for dual protection, and a 2nd layer protection is activated if the 1st simulated charging fails. The BMS is certified for UL2054.
    3. Over temperature protection, the charging is disconnected when the battery cell is out of the 50+/-5℃ range or below 0℃.
    4. PTC protection, disconnected automatically when charging current is abnormal.
    5. Over-discharge protection
    6. Overcurrent protection
    7. Short circuit protection

    BMS-7-Layer-Protection

    Bidirectional PCS for Quick charging
    1-2 hours for a full quick charging with this technology

    Bidirectional-PCS-for-Quick-charging

    MPPT solar charging
    Self-developed software algorithm,enhanced charging performance

    MPPT-solar-charging

    Portable Power Station Application:

    The application scenarios of portable energy storage power supply include the following categories, outdoor camping, self-driving travel, mobile office, and outdoor work. Meet its emergency power needs, such as lighting, fans, audio, charging, cooking, etc. for outdoor camping, power shortages for self-driving travel and mobile office, and surveying, maintenance, emergency rescue, etc. for outdoor operations

    Portable-Power-Station-Application
