8KW 6KW 5KW 8000W Solar Inverter For Solar Energy Storage System

8kw 6kw 5kw 5 Years Warranty 8000w Solar Inverter For Solar Energy Storage System

Product Description

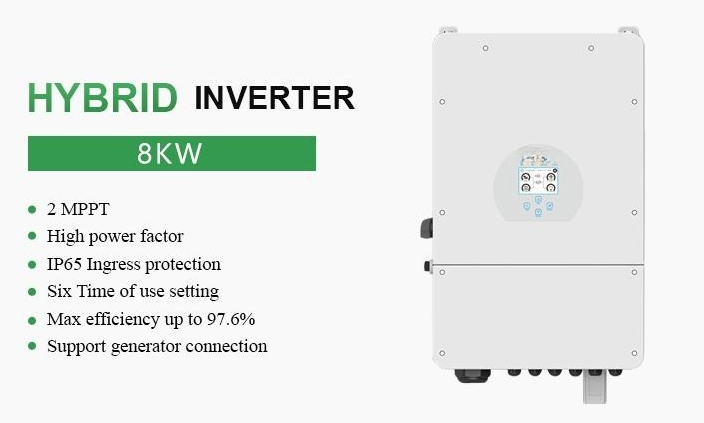

Hybrid solar inverter SUN-5K/6K/7K/8K-SG01LP1-EU is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operate on such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.

● 2 MPPT
● High power factor
● IP65 Ingress protection
● Six Time of use setting
● Max efficiency up to 97.6%
● Support generator connection

Specifications

Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	120A	135A	190A
Max. Discharging Current (A)	120A	135A	190A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	6500W	7800W	9880W	10400W
PV Input Voltage (V)	370V (100V~500V)
MPPT Range (V)	125V-425V
Start-up Voltage (V)	150V
PV Input Current (A)	13A+13A	26A+13A	26A+26A
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracker	1+1	2+1	2+2
AC Output Data
Rated AC Output and UPS Power (W)	5000W	6000W	7600W	8000W
Max. AC Output Power (W)	5500W	6600W	8360W	8800W
Peak Power (oﬀ grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	20.8A	25A	31.7A / 33A	33.4A / 35A
Max. AC Current (A)	22.9A	27.5A	34.9A / 36.3A	36.7A / 38.5A
Max. Continuous AC Passthrough (A)	35A	40A	50A
Output Frequency and Voltage	50 / 60Hz;230Vac (single phase)
Grid Type	Single Phase
Current Harmonic Distortion	THD<3%(Linear load<1.5%)
Eﬃciency
Max. Eﬃciency	97.60%
Euro Eﬃciency	97.00%
MPPT Eﬃciency	99.90%
Protection
Integrated	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection
Output Over Voltage Protection	DC Type II / AC Type II
Certifications and Standards
Grid Regulation	VDE 0126,AS4777,NRS2017,G98,G99,IEC61683,IEC62116,IEC61727
Safety Regulation	IEC62109-1, IEC62109-2
EMC	EN61000-6-1, EN61000-6-3
General Data
Operating Temperature Range (℃)	-25~60℃, >45℃ Derating
Cooling	Fan
Noise (dB)	<30
Communication with BMS	RS485; CAN
Weight (kg)	32
Size (mm)	670×420×233mm
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

System Architechture

The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running
system. - Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.

① DC Breaker for battery

② AC Breaker for grid and backup load
SUN 8K-SG: 250A DC breaker SUN 8K-SG: 80A AC breakerSUN 10K-SG:300A DC breaker SUN 10K-SG:80A AC breaker
SUN 12K-SG:300A DC breaker SUN 12K-SG:80A AC breaker

③ AC Breaker for grid and backup load

④ AC Breaker for home load
SUN 8K-SG: 20A AC breaker Depends on household loadsSUN 10K-SG:32A AC breaker
SUN 12K-SG:32A AC breaker
