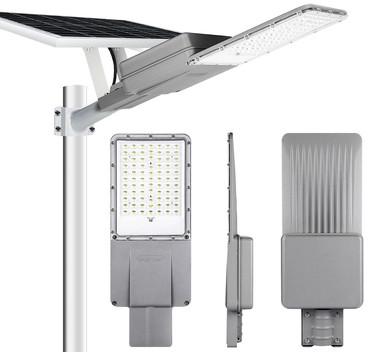

Aluminum Design Separated Motion Sensor DC 100W 200W 300W 400W IP66
Solar Powered Outdoor Street Lamp Led Street Light
Solar Powered Led Street Light Description
The new style all in one solar street light with overall design is
compact and the structure is novel; the protection level of the
whole lamp is high, reaching IP65.
Built-in microwave sensor, can realize intelligent switch, save
energy to the greatest extent, extend working time.
The installation method is the same as the conventional street
lamp; and no additional cable is needed, which is very simple and
the installation cost is low.
Solar Powered Led Street Light Specification
| Product Name | solar powered led street light |
| Model No. | TR40-100W | TR86-200W | TR86-300W |
| Power | 100W | 200W | 300W |
| Size of Lamp | 569x204x55mm | 569x204x68.6mm | 569x204x68.6mm |
| Battery | 3.2V /40AH | 3.2V /86AH | 3.2V /86AH |
| Solar Panel | 5V/ 40W | 5V/ 60W | 5V/ 100W |
| Installation Height | 8-10 Meters | 10-12 Meters | 10-12 Meters |
| Beam Angle | 104° |
| IP Class | IP65 |
| Color Temperature | 3000K/4000K/6000K |
| Housing Color | Gray |
| Housing Material | Aluminum |
| Working Temperature | -20℃~50℃ |
| Charging Time & Working Time | Charging Time:5-6 hours. Auto Working Mode:Full charged can work
for 10 hours and 7 rainy day backup. | Charging Time:6-8 hours. Auto Working Mode:Full charged can work
for 12 hours and 7 rainy day backup. |
| Model NO. | Power | Size:LxWxH(mm) | Ra | PF | Luminous Flux |
| TR86 100W | 100W | 569x204x55mm | >80 | >0.9 | 170lm/w |
| TR86 200W | 200W | 569x204x68.6mm | >80 | >0.9 | 170lm/w |
| TR86 300W | 300W | 569x204x68.6mm | >80 | >0.9 | 170lm/w |
Solar Powered Led Street Light Features
1. Single solar panel or Double solar panel.
2. Optional full cover vented aluminum panel pan.
3. LED Street Lamp.
4. No need to lay cables, no AC power supply,no electricity charges
5. DC power supply, light-sensitive control; good stability.
6. Long life, high luminous efficiency, easy installation and
maintenance.
Solar Powered Led Street Light Application
It is a reliable and durable stand alone solar solution for
sustainable street lighting , Car parking lighting, garden lighting
etc ,perfect in arid, tropical and temperate environments.
