Hybrid Solar Energy Storage Systems 20Kw 30Kw 50Kw 100Kw 150Kw 200Kw 1MW Off On Grid Solar System With Lithium Battery

Ask Lasest Price
Price :	negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	negotiated

Add to Cart

Product Details
Company Profile

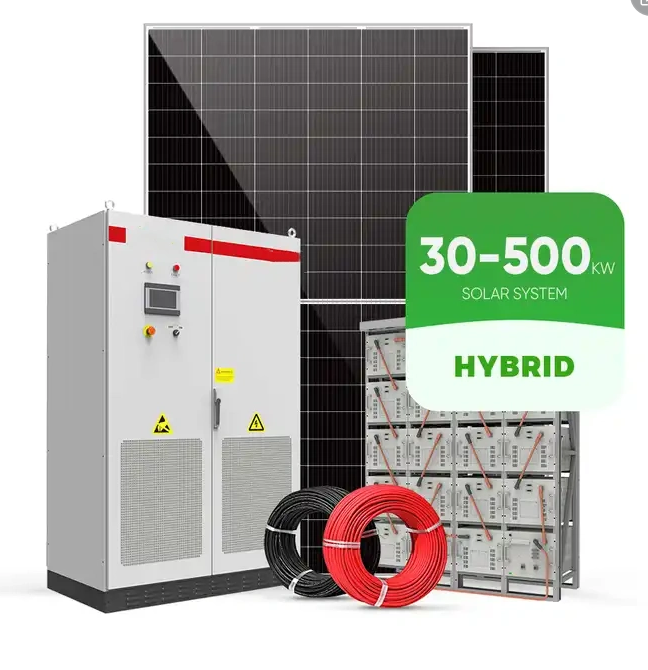

Hybrid Solar Energy Storage Systems 20Kw 30Kw 50Kw 100Kw 150Kw 200Kw 1MW Off On Grid Solar System With Lithium Battery

Hybrid Solar Energy Storage System 20Kw 30Kw 50Kw 100Kw 150Kw 200Kw 1MW Off On Grid Solar System With Lithium Battery

Product Description

Hybrid Solar Energy Storage Systems 20Kw 30Kw 50Kw 100Kw 150Kw 200Kw 1MW Off On Grid Solar System With Lithium Battery

How it works

What's Included:

Model	30KW-HY	50KW-HY	100KW-HY
Half Cut Mono 550W Solar Panel	55 Pieces	91 Pieces	180 Pieces
PV Combiner Box	5 Input 1 output 1Piece	7 Input 1 output 1Piece	5 Input 1 output /3PCS 3 Input 1 output /1PCS
Hybrid Inverter	HPS30	HPS50	HPS100
High Voltage LiFePo4 Battery Bank	30Kwh	50Kwh	100Kwh
DC Cable 4mm2	500 meter	1000 meter	1500 meter
MC4 Connector	20 Pairs	30 Pairs	90 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	Wire Cable Cutter & Stripper, Disassembly Tool

Model	120KW-HY	150KW-HY	200KW-HY
Half Cut Mono 550W Solar Panel	216 Pieces	264 Pieces	360 Pieces
PV Combiner Box	6 Input 1 output /3PCS 3 Input 1 output /1PCS	8 Input 1 output /3PCS 3 Input 1 output /1PCS	5 Input 1 output /6PCS 3 Input 1 output /2PCS
Hybrid Inverter	HPS120	HPS150	HPS100/2PCS
High Voltage LiFePo4 Battery Bank	120Kwh	150Kwh	200Kwh
DC Cable 4mm2	1800 meter	2400 meter	3000 meter
MC4 Connector	100 Pairs	120 Pairs	180 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	Wire Cable Cutter & Stripper, Disassembly Tool

Model	300KW-HY	400KW-HY	500KW-HY
Half Cut Mono 550W Solar Panel	540 Pieces	720 Pieces	900 Pieces
PV Combiner Box	5 Input 1 output /9PCS 3 Input 1 output /3PCS	5 Input 1 output /12PCS 3 Input 1 output /4PCS	5 Input 1 output /15PCS 3 Input 1 output /5PCS
Hybrid Inverter	HPS100/3PCS	HPS100/4PCS	HPS100/5PCS
High Voltage LiFePo4 Battery Bank	300Kwh	400Kwh	500Kwh
DC Cable 4mm2	4500 meter	6000 meter	7500 meter
MC4 Connector	270 Pairs	360 Pairs	450 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	Wire Cable Cutter & Stripper, Disassembly Tool

Half Cut Mono 550W Solar Panel

Peak Power Watts: 560W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A Open Circuit Voltage: 49.75V Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm Weight:26.9 kg

Hybrid Solar Inverter

48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging. Max.
charging/discharging current of 240A Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system

Monitoring System

Up to 32 inverters connection.Multi-function and high performance.
Local webserver for easy configuration.

Support external sensor to realize zero-export function.

Wall Mounted LiFePo4 Battery

Easy installation and maintenance
Local and remote management,standard rack&module design, front maintenance.High density
LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg.
Self-developed 3-level BMS, complex protection, safe and reliable.
Long cycle life, 6000 cycles.

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

PV Combiner Box

IP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional

Rated Voltage:600VDC/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

DC & AC Disconnect Switch

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A

PV Tools

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

FAQ

1. who are we?
We are based in China, start from 2023,sell to North America(30.00%),Africa(20.00%),Northern Europe(20.00%),Eastern Europe(10.00%),Eastern Asia(10.00%),South Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
energy storage system,battery,inverter,solar panel,charging pile

4. why should you buy from us not from other suppliers?
All products are first-hand sources and can be customized according to customer needs.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
