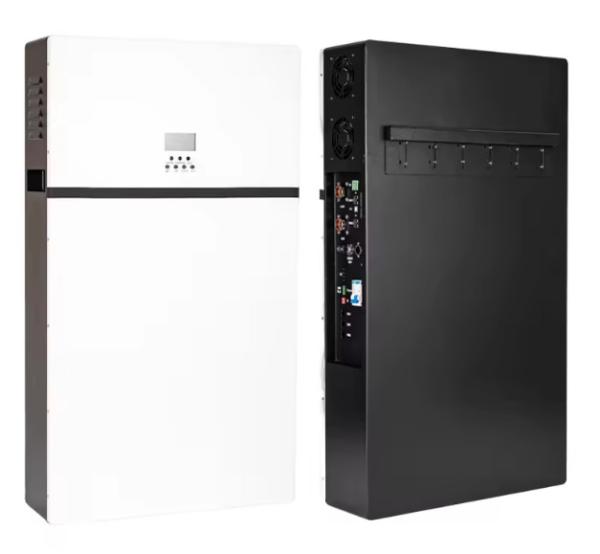

Indoor Wall-Mounted Home Energy Storage System 5.12Kwh 10.24Kwh LiFePO4 Battery Off Gird Solar Generator System

    Buy cheap Indoor Wall-Mounted Home Energy Storage System 5.12Kwh 10.24Kwh LiFePO4 Battery Off Gird Solar Generator System from wholesalers

    Buy cheap Indoor Wall-Mounted Home Energy Storage System 5.12Kwh 10.24Kwh LiFePO4 Battery Off Gird Solar Generator System from wholesalers
    • Buy cheap Indoor Wall-Mounted Home Energy Storage System 5.12Kwh 10.24Kwh LiFePO4 Battery Off Gird Solar Generator System from wholesalers
    • Buy cheap Indoor Wall-Mounted Home Energy Storage System 5.12Kwh 10.24Kwh LiFePO4 Battery Off Gird Solar Generator System from wholesalers
    • Buy cheap Indoor Wall-Mounted Home Energy Storage System 5.12Kwh 10.24Kwh LiFePO4 Battery Off Gird Solar Generator System from wholesalers

    Indoor Wall-Mounted Home Energy Storage System 5.12Kwh 10.24Kwh LiFePO4 Battery Off Gird Solar Generator System

    Ask Lasest Price
    Price : negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : negotiated
    Certification : CAN, RS485,RS232
    • Product Details
    • Company Profile

    Indoor Wall-Mounted Home Energy Storage System 5.12Kwh 10.24Kwh LiFePO4 Battery Off Gird Solar Generator System

    Indoor Wall-Mounted Home Energy Storage System 5.12Kwh 10.24Kwh LiFePO4 Battery Off Gird Solar Generator System

    Product Description
    1.High safety, long life: the selection of high consistency, safety and reliability of lithium iron phosphate batteries.
    2.With methods of mains power bypass, inverter output, photovoltaic power generation, etc., and has the function of uninterrupted power supply;
    3.Four charging modes: Solar mode,Priority power frequency AC, Priority solar , hybrid charging; 4.Communication support CAN, RS485, RS232;
    5.Integrated design of battery and inverter module,the product is beautiful and green environmental protection,non-toxic and non-polluting.
    6.Complete short circuit protection, over-undervoltage protection, overload protection,
    back-irrigation protection and many other protection functions;
    Household light storage integrated machine
    Model Number
    PMD-ESS-BP100S16-F
    PMD-ESS-BP200S16-F
    Cell type
    EVE-LFP square battery cell-3.2V100Ah
    Rated capacity
    100Ah
    200Ah
    Rated total energy
    5.12Kwh
    10.24Kwh
    Rated voltage
    51.2V
    Voltage range
    43.2-58.4V
    Photovoltaic power generation parameters
    Maximum output power
    5000W
    MPPT voltage range
    120~450V
    Solar charging current
    0~80A
    AC parameters
    Rated output power
    5000W
    Rated output voltage
    230Vac(200/208/220/240Vac)±5%
    Output frequency range
    50Hz ± 0.3Hz /60Hz ±0.3 Hz
    Efficiency
    input>95%,output>90%
    System parameters
    Weight
    45kg
    85kg
    Size (height*width*deepth)
    800*480*180mm
    1120*480*180mm
    Protection class
    IP54
    Cooling mode
    Forced air cooling
    Ambient temperature
    Charge:0℃~55℃/Discharge:-20℃~60℃/Storage:-10℃~45℃/
    Operating humidity
    5~95%,relative humidity
    Installation mode
    Wall-mounted
    Communication methods
    CAN, RS485,RS232

    Indoor Wall-Mounted Home Energy Storage System 5.12Kwh 10.24Kwh LiFePO4 Battery Off Gird Solar Generator System

    Company Profile

    Guangzhou Pei Mengdan New Energy Technology Co., Ltd.have dedicated in designing and producing renewable energy integration and distribution for more than 10 years.We're the energy storage industry's partner of choice for flexible,robust, reliable, and innovative solutions guaranteed to deliver the lowest cost of ownership.Through a continuous focus of engineered simplicity, UPP's battery and storage solutions optimize for efficient installation,compatibility and high reliability.

    FAQ
    Q: Is your product safe?
    A: Yes, our product has passed safety tests for overcharge, over discharge, over temperature, short circuit, and acupuncture. It will not catch fire or explode under any circumstances.
    Q: How can I confirm the high quality of the product you sent me?
    A: We test each product before sending them out and guarantee that all our batteries are grade A quality. You can rest assured that you are receiving a high-quality product.
    Q: Will the battery be easily damaged during transportation due to its weight?
    A: We understand your concerns and have improved our packaging to ensure the safety and reliability of our products during transportation. When you receive your package, you will feel our sincerity and commitment to providing you with the best product possible.
    Q: Can I print my logo on your product?
    A: Yes, you can. Please let us know before production and confirm the design based on our sample.
    Q: How accurate is the freight displayed on your website?
    A: The freight displayed on our website is calculated based on usual air freight prices and may vary depending on the weight of your order and the country you are in. Please contact us before placing your order and we will provide you with the best shipping method and accurate freight costs.
    Q: Why is the transportation time so long and why hasn't the tracking number been updated in almost a month?
    A: Our product contains batteries, which require strict transportation regulations. We use a formal DG logistic channel which is slower than normal logistics because it needs to wait for the DG ship/train schedule. Due to the nature of the product and logistics, the tracking number we provide will not be updated until the goods pass through customs in your country. However, please rest assured that your goods are still in transit and you will receive them within 3-5 days after customs clearance.
