Off-Grid Solar Power System 5000W 10000W 15000W Solar Battery Home

Ask Lasest Price
Price :	negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	negotiated

Add to Cart

Product Details
Company Profile

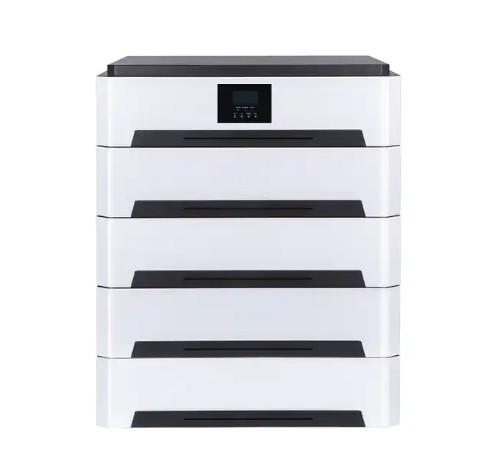

Off-Grid Solar Power System 5000W 10000W 15000W Solar Battery Home

Off-Grid Solar Power System 5000W 10000W 15000W Solar Battery Home
Products Description

Specification

	H4805U-SO	H4810U-SO	H4815U-SO	H4820U-SO
BATTERY
Battery Module	1	2	3	4
Battery Energy	5.12kWh	10.24kWh	15.36kWh	20.48kWh
Battery Capacity	100AH	200AH	300AH	400AH
Weight	80kg	133kg	186kg	239kg
Dimension L×W×H	710×450×384	710×450×576	710×450×768	710×450×960
Battery Type	LiFePO4
Battery Rated Voltage	51.2V
Battery Working Voltage Range	44.8 ～ 57.6V
Maximum Charging Current	100A
Maximum Discharging Current	100A
DOD	80%
Parallel Quantity	4
Designed Life-span	6000
Operating Temperature	Charge:0 ～ 45℃ Discharge:-10 ～ 45℃
Operation Humidity	5% ～ 85%
Nominal Operation Altitude	＜2000m
Cooling Mode	Force-Air Cooling
Noise	60dB(A)
Ingress Protection Rating	IP20
Recommended Operation Environment	Indoor
Installation Method	Horizontal
INVERTER TECHNICAL SPECIFICATION
Inverter model	RS-H4850U-CO
PV CHARGE
Solar Charge Type	MPPT
Maximum Output Power	5KW
PV Charging Range	0～80A
PV Operating Voltage Range	120～500V
MPPT Voltage Range	120～450V
AC CHARGE
Maximum Charge Power	2100W
AC Charging Current Range	0～40A
Rated Input Voltage	110/120Vac
Input Voltage Range	90～140Vac
AC OUTPUT
Rated Output Power	5KW
Maximum Output Current	50A
Frequency	60Hz
Overload Current	55A
BATTERY INVERTER OUTPUT
Rated Output Power	5KW
Maximum Peak Power	10KVA
Power Factor	1
Rated Output Voltage (Vac)	120Vac
Frequency	60Hz
Auto Switch Period	＜15ms
THD	＜3%
GENERAL DATA
Communication	RS485/CAN/WIFI
Storage time / temperature	6 months @25℃;3 months @35℃;1 months @45℃;
Charging temperature range	0～45℃
Discharging temperature range	-10～45℃
Operation Humidity	5% ～ 85%
Nominal Operation Altitude	＜2000m
Cooling Mode	Force-Air Cooling
Noise	60dB(A)
Certification	UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3

Product Details

FAQ

1. who are we?

We are based in Guangdong, China, start from 2001,sell to Domestic Market(55.00%),Western Europe(21.00%),North America(14.00%),Eastern Asia(6.00%),South Asia(1.00%),Eastern Europe(1.00%),Mid East(1.00%),Southeast Asia(1.00%),South America(0.00%),Oceania(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Africa(0.00%). There are total about 1000+ people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3. what services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW；

Accepted Payment Currency:USD,EUR,HKD,CNY;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;

Language Spoken:English,Chinese,Russian
