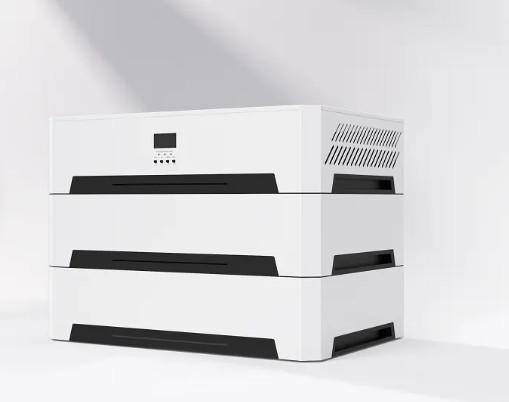

Solar Power System Household 10KW Off Grid Solar Energy Storage System
Specification
| | RS-H4805S-SO | RS-H4810S-SO | RS-H4815S-SO | RS-H4820S-SO |
| BATTERY |
| Battery Module | 1 | 2 | 3 | 4 |
| Battery Energy | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh |
| Battery Capacity | 100AH | 200AH | 300AH | 400AH |
| Weight | 80kg | 133kg | 186kg | 239kg |
| Dimension L×W×H | 710×450×384 | 710×450×576 | 710×450×768 | 710×450×960 |
| Battery Type | LiFePO4 |
| Battery Rated Voltage | 51.2V |
| Battery Working Voltage Range | 44.8 ～ 57.6V |
| Maximum Charging Current | 100A |
| Maximum Discharging Current | 100A |
| DOD | 80% |
| Parallel Quantity | 4 |
| Designed Life-span | 6000 |
| INVERTER TECHNICAL SPECIFICATION |
| Inverter model | RS-H4850U-CO |
| PV CHARGE |
| Solar Charge Type | MPPT |
| Maximum Output Power | 5KW |
| PV Charging Range | 0～80A |
| PV Operating Voltage Range | 120～500V |
| MPPT Voltage Range | 120～450V |
| AC CHARGE |
| Maximum Charge Power | 3150W | | | |
| AC Charging Current Range | 0～60A |
| Rated Input Voltage | 220/230Vac |
| Input Voltage Range | 90～280Vac |
| AC OUTPUT |
| Rated Output Power | 5KW |
| Maximum Output Current | 30A |
| Frequency | 50Hz |
| Overload Current | 35A |
| BATTERY INVERTER OUTPUT |
| Rated Output Power | 5KW |
| Maximum Peak Power | 10KVA |
| Power Factor | 1 |
| Rated Output Voltage (Vac) | 230Vac |
| Frequency | 50Hz |
| Auto Switch Period | ＜15ms |
| THD | ＜3% |
| GENERAL DATA |
| Communication | RS485/CAN/WIFI |
| Storage time / temperature | 6 months @25℃;3 months @35℃;1 months @45℃; |
| Charging temperature range | 0～45℃ |
| Discharging temperature range | -10～45℃ |
| Operation Humidity | 5% ～ 85% |
| Nominal Operation Altitude | ＜2000m |
| Cooling Mode | Force-Air Cooling |
| Noise | 60dB(A) |
| Certification | UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3 |
