Wall Mounted 48v 200ah 10kwh Battery Lifepo4

Ask Lasest Price
Price :	negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	negotiated

Add to Cart

Product Details
Company Profile

Wall Mounted 48v 200ah 10kwh Battery Lifepo4

Specification

Key features

1. Withstand thermal shock and puncture without fire or explosion

2. Compatible with global mainstream brands inverter

3. Real-time monitoring on LCD screen

4. Communication compatibility: CAN, RS485, RS232

5. Built-in 1A active balancer

6. Built-in 120A circuit breaker, dual protection

7.Modular design, easy to install and maintain, support parallel connection

8. Professional BMS, multiple protection

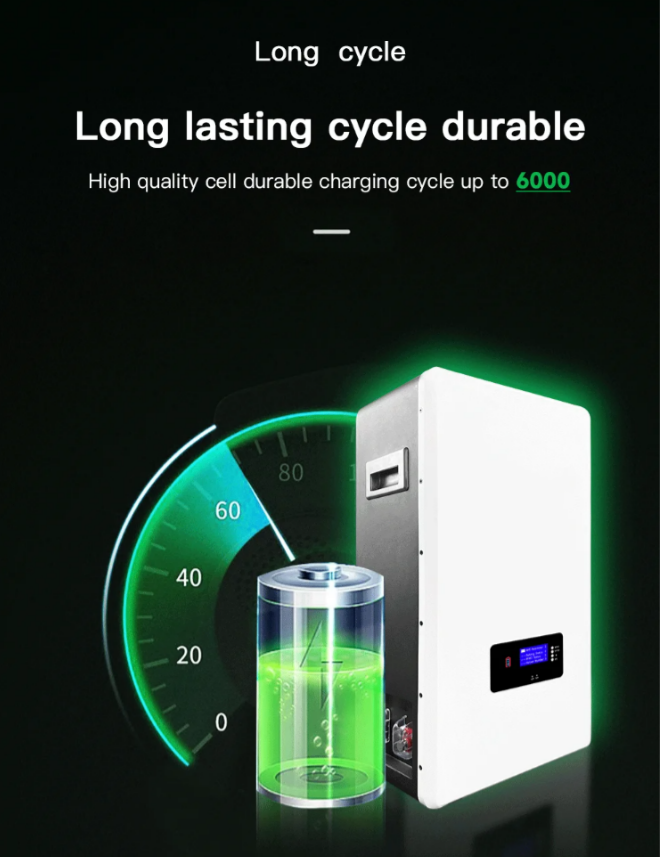

9. 6000 cycles, long life

10. Can be connected to APP remote control

Model	HX48100W	HX48150W	HX48200W
Nominal Voltage	51.2V	51.2V	51.2V
Nominal Capacity	100Ah	150Ah	200Ah
Rated Energy	5120Wh	7680Wh	10240Wh
Maximum Charge Voltage	57.6V	57.6V	57.6V
Maximum Charge Current	100A	150A	200A
Maximum Continuous Discharge Current	100A	150A	200A
Maximum Peak Discharge Current (5 seconds)	200A	300A	400A
Discharge Cut-off Voltage	43.2V	43.2V	43.2V
Charge Temperature	-5~+60℃
Discharge Temperature	-10~+65℃
Storage Temperature	-20~+45℃
Self Discharge (Stored at 50%SOC)	≤3%/month
Cycle Life (25℃, 0.5C, 100% DOD)	>6000
Terminals	M8 Nut
Protection Level	IP54
Dimensions	485684158mm	485684180mm	490680217mm
Weight	47.5kg	69kg	86kg
Communication Protocol	CAN/RS485/RS232

Wall Mounted 48v 200ah 10kwh Battery Lifepo4

Company Profile

We passed ISO9001:2000 in 2008, also we have gained certification KC, UL, CE, FCC, CB, ROHS, REACH, PSE, UN38.3 and so on. With the effort of all Hysincere staffs, our products have been sold to over 30 countries including Europe, North America, Southeast Asia, Singapore, Taiwan, South Korea and other countries and regions, we have been widely accepted and got very positive feedbacks Standing by our tenet: "credit, enterprise, solidarity, mutualism", sincerely hope to cooperate with you in order to achieve collective progress.
