10KW 5kw Lithium Battery All In One Off Grid Solar Power System 48v Lifepo4 Battery Home Energy Storage Inverter Battery

Ask Lasest Price
Price :	negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	negotiated

Add to Cart

Product Details
Company Profile

10KW 5kw Lithium Battery All In One Off Grid Solar Power System 48v Lifepo4 Battery Home Energy Storage Inverter Battery

We are manufacture specialized in portable power stations, solar generator, home energy storage solution for almost 20 years: 1). One of the TOP manufactures in lithium battery industry in China. 2). 2 factories in China, after-sales center in Germany, Netherlands,Nigeria, Indonesia, Kenya South Africa, Pakistan,Zhejiang China. 3). After sales can be solved within 24 hours. 4).ISO9001,IS01:14000,BSCI certificated. 5). All products comply with worldwide standard, such as CE, FCC, UL, ICE62619, ICE62133,ICE62368,UN38.3, MSDS, etc. 6). Own 43 patents. 7). BMS developed and produced by ourselves.

1, Integrated StorageSystem
Battery buiIt-in inverter
2, Space Saving
All in one battery+inverter
3, Wifi Communication APP Control Keep trace of its
4, 6000 Cycles
Super long working lifespan
5, BMS System
lndependent smart BMS system protection

2.3 Product Overview NOTE :All the input and output ports are at the bottom of the product

1.AC input 10.Battery Parallel port RS485
2.AC output 11.Battery on/off switch
3.PV input 12.Battery-(GND)
4.Battery+(51.2v) 13.WIFI Port
5.Inverter on/off switch 14.Inverter RS232/RS485/CAN port
6.BMS CAN port 15.lnverter USB port
7.BMS 485 port 16.Inverter Generator dry contact
8.RS232 port 17.lnverter Current sharing port
9.Battery Parallel port RS485 IN 18.lnverter parallel port

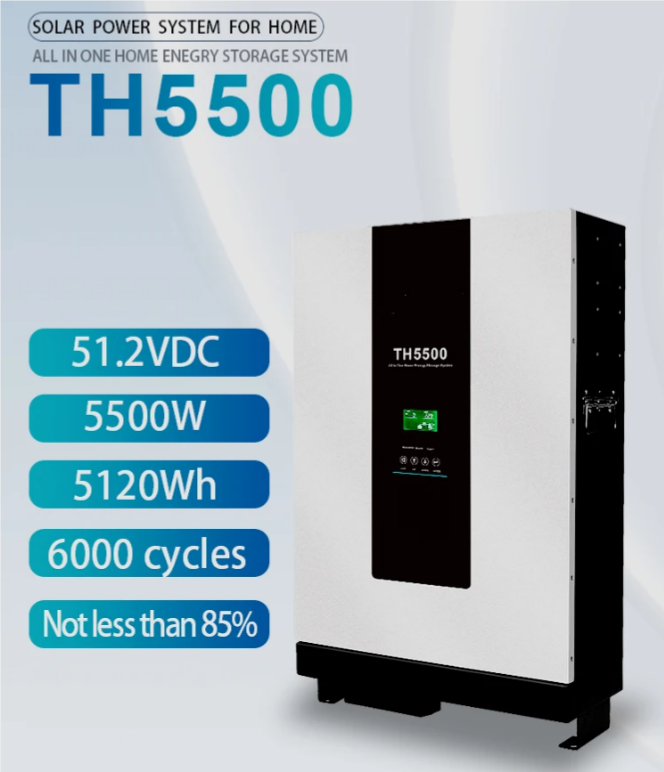

	TH1100	TH1500	TH3000	TH3500	TH5500	TH6500	TH8000
Standard Voltage	25.6Vdc				51.2Vdc
Capacity	1.28Kwh	1.35Kwh	2.56Kwh	3.8Kwh	5.12Kwh	7.6Kwh	15.36Kwh
Rated Power	1000w	1200w	3500w		5500w	6500w	8Kw
Current regulating power	2000w	2400w	7000w		11000w	13000w	16Kw
Max.AC Charging Current(Battery)	20A		40A	60A			100A
MPPT Working Voltage Range	36~90Vdc		120-450Vdc
Max.PV Charging Current(Battery)	10A		80A				120A
Max.PV Power	500W	700W	3500W	3500W	5500W	6500W	8000W
Communication Method	USB/RS232/WIFI			WIFI/RS485/CAN		USB/RS232/WIFI
Warranty	5Years

FAQ

Q1:What services can we provide? A: Both ODM and OEM are available.

Q2: What kind of certificates do you have? A: Our factory is ISO9001, ISO1:14000 and BSCI certificated.All products are comply with worldwide standard, such as CE, ROHS, FCC, IEC62619,IEC62133, MSDS, UN38.3 etc.

Q3: What's your production lead time? A: lt depends on the order quantities. For samples it take around 5-7 days. For bulk order, the lead time is around 15 to 25 days.

Q4: How to ensure quality? A: 100% aging test(charge and discharge to simulate customers' usage scenarios) & 100% inspection before shipment.

Q5: what services can be provided? A:2 years warranty for portable power stations, 5 years for household solar power system. With after-sales center in Nigeria, Indonesia, Kenya,Germany,Netherlands, South Africa, Pakistan and Zhejiang China,after-sale can be solved within 24 hours.

Q6: What kind of battery do you use? A: Our factory has been focusing on lithium battery industrial for almost 20 years, now became one of the TOP manufacture in this field, all our products are using total new grade A battery.
