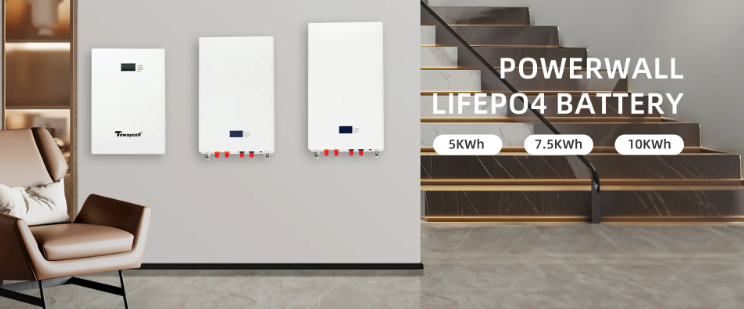

Rechargeable LiFePO4 Solar Battery Pack 48v 300ah 15kwh Lithium Ion Power Wall

Product Categories

guangzhou pmd technology co ltd

Contact Now

Ask Lasest Price
Price :	negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	negotiated

Add to Cart

Products Description

Model	5kwh(100Ah)	7.5kWh(150Ah)	10kWh( 200Ah)	15kWh( 300Ah)
Nominal Voltage	48V(15S)/51.2V(16S)
Energy(Unit: wh)	4800 / 5120	7200/ 7680	9600 / 10210	14400 / 15360
Cycle	6000	6000	6000	6000
Internal Resistance	100≤mΩ	100≤mΩ	100≤mΩ	100≤mΩ
Bulit in Inverter	No
Modes	Wall-mounted	Wall-mounted	Wall-mounted/ Mobile ESS	Mobile ESS
Battery Working	40.5~42.0V	40.5~42.0V	40.5~42.0V	40.5~42.0V
Charging Mode(CC/CV)	At 0℃~45℃ temperature, charge to 57.6V at a constant current of 0.2C, and then change continuously with constant voltage of 57.6V until the current was not more than 0.02C.
Charging Current	20A	20A	20A	20A
Max.Charging Current	100A	100A	100A	100A
Discharging Current	20A	20A	20A	20A
Max. Continuous Current	100A	100A	100A	100A
Max.Pulse Current	150A(<30S)	150A(<30S)	150A(<30S)	150A(<30S)
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance	IP22
Cell & Format	IFR N100,16S1P(51.2V)
Casing	SPCC
Dimension(LWH)	64.24018.5cm	815230cm	815230cm	815230cm
Weight	48.4kg	90.5kg	97kg	140kg
Communication	RS485/CAN/RS232
Support Inverter	Deye, Voltronic Power, Growatt, GOODWE, Victron energy, SRNE, PYLONTECH, SOFAR, MUST, MEGAREVOk, YWT, SRD, STUDER, SMA, DIDU, GINLONG

Rechargeable LiFePO4 Solar Battery Pack 48v 300ah 15kwh Lithium Ion Power Wall

Support Inverter

Packaging & Shipping
