51.2V 10Kw Off Grid Solar Power System Home Energy Storage 48V 200Ah Solar Hybrid Lithium Battery
| PV CHARGE |
| Solar Charge Type | MPPT |
| Maximum Output Power | 5000W |
| PV Charging Current Range | 0〜80A |
| PV Operating Voltage Range | 120〜500V |
| MPPT Voltage Range | 120〜450V |
| AC CHARGE |
| Maximum Charge Power | 2100W |
| AC Charging Current Range | 0〜40A |
| Rated Input Voltage | 110/120Vac |
| Input Voltage Range | 90〜140Vac |
| AC OUTPUT |
| Rated Output Power | 5000W |
| Maximum Output Current | 30A |
| Frequency | 50Hz |
| Overload Current | 55A |
| BATTERY INVERTER OUTPUT |
| Rated Output Power | 5000W |
| Maximum Peak Power | 10KVA |
| Rated Output Voltage (Vac) | 120Vac |
| Frequency | 60Hz |
| Auto Switch Period | ＜15ms |
| BATTERY TECHNICAL SPECIFICATION | SunPro-B1605 |
| Battery Energy | 5.12kWh |
| Battery Capacity | 100AH |
| Weight | 80kg |
| Dimension L×W×H | 1190×600×184 |
| Battery Type | LiFePO4 |
| Battery Rated Voltage | 51.2V |
| Battery Working Voltage Range | 44.8 ～ 57.6V |
| Maximum Charging Current | 100A |
| Maximum Discharging Current | 100A |
| GENERAL DATA |
| Communication | RS485/CAN/WIFI |
| Storage time / temperature | 6 months @25℃;3 months @35℃;1 months @45℃; |
| Certification | UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3 |
Real-time battery indicator
The power indicator is displayed on the front
Real-time observation of power status
1. A variety of application scenarios, full of intelligence

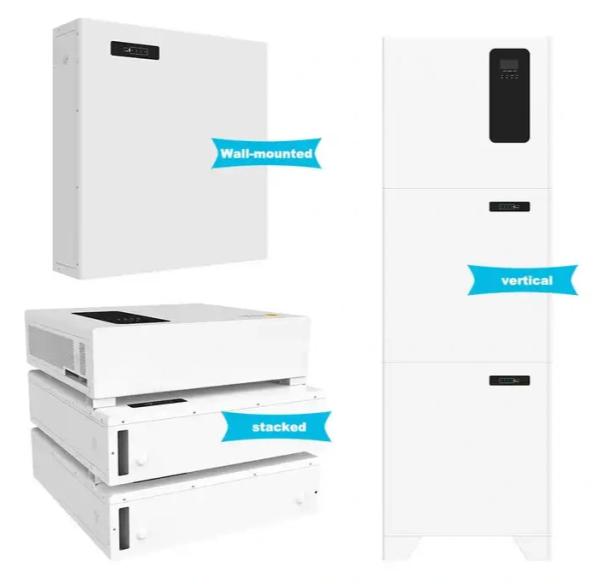

2. Vertical/horizontal/wall-mounted three installation modes
3. The power cord uses quick plug terminals
4. Easy installation, efficient work, 10 minutes to complete the installation
Q: I need more function such BT and LED screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?
Re: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expection.
Q: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low, can i get a cheaper price? and i can see your competitor sells more cheap then you.
Re: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market. Low profit? Don't worry about that, our engineer team will help you help you to solve it.
Q: I can see the post that your company shows the warranty is 3~5 Years, so no matter what the battery pack be used for, all 5 Years?
Re: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the battery pack can exceed 4000 cycles and warranty 3~5 Years, only energy storage usage.
Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
Re: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
Q: What about the delivery time and shipping?
Re: some of times in stock, we can make 3-7days fast delivery. For USA,Canada,Austraila and most of European country , we provide tax included services, door to door, once you place an order ,then you will receive your new battery pack in about 40-55 days at your home!
