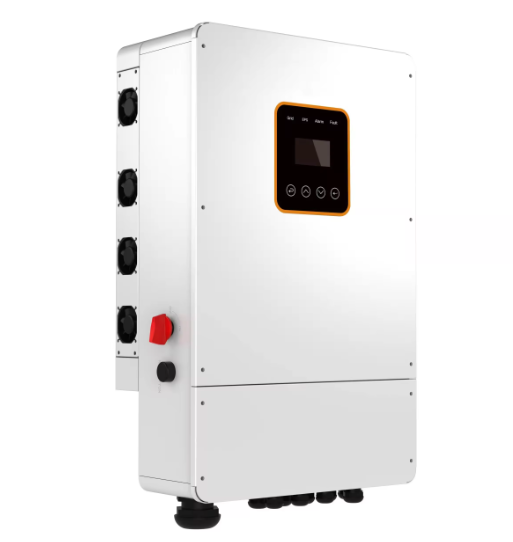

Wall Mounted 5KW 5KVA 48VDC Split Phase 120V/240V Bybrid Solar Inverter 6KW 8KW 10KW For Solar Power System

    Buy cheap Wall Mounted 5KW 5KVA 48VDC Split Phase 120V/240V Bybrid Solar Inverter 6KW 8KW 10KW For Solar Power System from wholesalers

    Buy cheap Wall Mounted 5KW 5KVA 48VDC Split Phase 120V/240V Bybrid Solar Inverter 6KW 8KW 10KW For Solar Power System from wholesalers
    • Buy cheap Wall Mounted 5KW 5KVA 48VDC Split Phase 120V/240V Bybrid Solar Inverter 6KW 8KW 10KW For Solar Power System from wholesalers
    • Buy cheap Wall Mounted 5KW 5KVA 48VDC Split Phase 120V/240V Bybrid Solar Inverter 6KW 8KW 10KW For Solar Power System from wholesalers

    Wall Mounted 5KW 5KVA 48VDC Split Phase 120V/240V Bybrid Solar Inverter 6KW 8KW 10KW For Solar Power System

    Ask Lasest Price
    Price : negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : negotiated
    • Product Details
    • Company Profile

    Wall Mounted 5KW 5KVA 48VDC Split Phase 120V/240V Bybrid Solar Inverter 6KW 8KW 10KW For Solar Power System

    Wall Mounted 5KW 5KVA 48VDC Split Phase 120V/240V Bybrid Solar Inverter 6KW 8KW 10KW for Solar Power System

    Product parameters

    Technical specification
    R5KLNA
    R6KLNA
    R8KLNA
    R10KLNA
    Input (PV)
    Max. power(kW)
    7.5
    9
    12
    13
    Max. DC voltage (V)
    500
    MPPT voltage range(V)
    125~500
    Max.Input current of single MPPT(A)
    14
    MPPT tracker/strings
    4/1
    AC output
    Rated output power(kVA)
    5
    6
    8
    10
    Max. apparent Power (kVA)
    5.5
    6.6
    8.8
    11
    Max. output current(A)
    22.9
    27.5
    36.7
    45.8
    AC output voltage(V)
    120/240(split phase), 208(2/3 phase),240 (single phase)
    Frequency (Hz)
    50 /60
    PF
    0.8lagging-0.8leading
    THDi
    <3%
    AC output topology
    Split phase, 2/3 phase, single phase
    Battery
    Battery voltage range(V)
    40~58
    Max. charging voltage(V)
    58
    Max. charge/discharge current(A)
    120/120
    135/135
    190/190
    210/210
    Battery type
    Lithium /Lead-acid
    Communication interface
    CAN/RS485
    EPS output
    Rated power (kVA)
    5
    6
    8
    10
    Rated output voltage(V)
    120/240 (split phase), 208 (2/3 phase),240 (single phase)
    Rated output current(A)
    22.9
    27.5
    36.7
    45.8
    Rated frequency(Hz)
    50/60
    Automatic switching time (ms)
    <20
    THDu
    ＜2%
    Overload capacity
    110%,30S/120%,10S/150%,0.02S
    General data
    Max. efficiency
    ≥98.2%
    CEC efficiency
    ≥97.2%
    Ingress protection
    IP65/NEMA 3R
    Noise emission(dB)
    ＜25
    ＜29
    ＜29
    ＜29
    Operation temperature (℃)
    -25 ~ 60 (＞45 Derating)
    Cooling
    Forced air
    Relative humidity
    0 ~95%(non-condensing)
    Operation altitude (m)
    2,000 (＞2,000 Derating)
    Dimensions W * D * H (mm)
    460*225*760
    Weight(kg)
    41
    Isolation transformer
    No
    Self-consumption(W)
    ＜25
    Display and communication
    Display
    LCD/ touch screen
    Interface:RS485/Wifi/4G/ CAN/Bluetooth
    Yes
    Safety standard
    UL1741, CSA C22.2 No. 107.1:16,UL1998
    EMC
    FCC Part 15, Class B
    On-grid
    IEEE1547, CPUC Rule21, SRD V2.0, UL1741 SA, UL1741 SB
    DC ARC-Fault
    UL1699B

    Wall Mounted 5KW 5KVA 48VDC Split Phase 120V/240V Bybrid Solar Inverter 6KW 8KW 10KW For Solar Power System

    Company Profile
    Guangzhou Pei Mengdan new energy Technology Co., LTD is a high-tech enterprise integrating R&D, production and sales, providing lithium battery system solutions for residential, industrial & commercial ESS,communication base stations, data centers, ,RVs, golf carts, forklifts and other special vehicles. PMD passed ISO9001, ISO14001, ISO45001 management system certification, and the products delivered to customers passed TUV-CB, CE, FC, IEC62619, UL1642, UL1973, EMC, UN38.3 etc.
    FAQ

    1.Who are we?

    We are a manufacturer.

    2.What can you buy from us?
    Home Energy Storage, Battery Pack, Battery Cell, Solar Inverters,UPS.

    3. What's difference between trading company and manufacturer?
    As a     manufacturer.We have a wide range of products for you to choose from.Low MOQ also supports customized services.

    4. What customizations do we support?
    Packaging, logo, pattern,battery class, capacity, wattage, BMS.
