Household Power Supply 10Kwh 20Kwh 30Kwh With Inverter AC/DC Outputs Solar System With Lifepo4 Lithium Batteries
Product parameters
Features:
● Single phase and split design which can meet different electricity requirements.
● It's mainly used in European and other countries with the same grid standard.

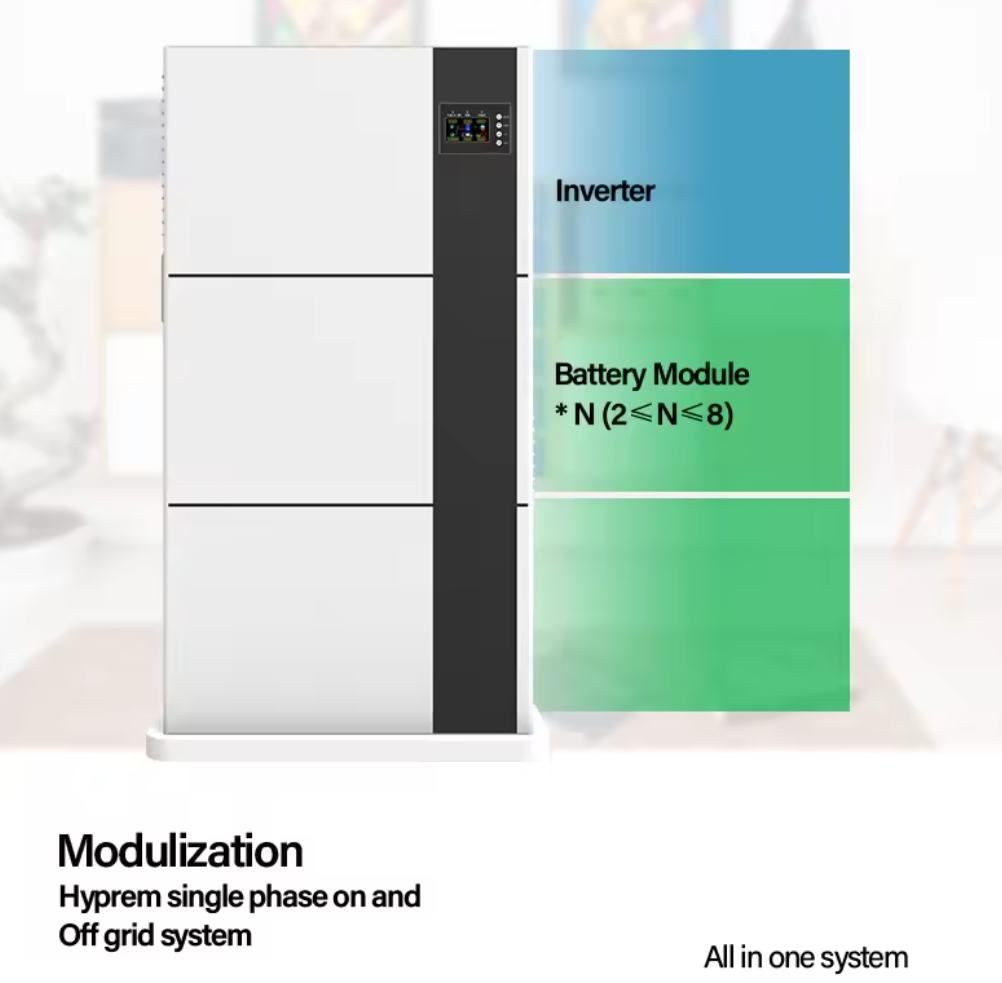

● All-In-One Design, include BMS, EMS, PCS and LFP Battery.
● Modulization design makes individual can move and install the product easily
● Personal computer On-line and Phone App monitoring, iOS/Android optional. Remote control.
● Multiple protection with alarm systems, safe and reliable;
● Can install the product wall-mounted like powerwall or ground mounted.
| Model Number | Hyprem-050-2S50 | Hyprem-050-4S50 | Hyprem-050-6S50 | Hyprem-050-8S50 | Hyprem-050-12S50 |
| AC data(on-grid) |
| Operation Mode | Single Phase(Load-matching mode/Backup mode/Peak-shaving mode) |
| Rating power | 5kva |
| AC input voltage range | 170~280Vac |
| AC input frequency range | 47.5~51.5Hz/57~61.5Hz |
| AC data (Battery mode) |
| Max. output power | 5.5kva |
| Rated AC Voltage | L/N/PE /220/230/240Vac±3% |
| Rated AC Frequency | 50/60Hz |
| Switch Time | ＜10ms |
| Battery data |
| Voltage range | 102.4V | 204.8V | 307.2V | 409.6V | 614.4V |
| Battery Type | Lithium iron phosphate (LFP) |
| Qty of Stackable Batteries | 2 | 4 | 6 | 8 | 12 |
| Total Battery Capacity | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh | 30.72kWh |
| Max charge/discharge current | 30A/30A |
| PV data |
| Recommended PV Power | 6500W |
| Max PV Voltage | 600Vdc |
| MPPT Voltage Range | 100-550Vdc |
| Max PV Current per String | 14A |
| Qty of MPPTs | 2 |
| System data |
| HMI | WIFI +App +LED |
| IP class | IP65+IP31 |
| Installation | Wall mounting(inverter), cabinet(battery) |
| Dimension/(W*H*D) /Weight | Depending on the Qty of Stackable Batteries |
Company Profile
Guangzhou Pei Mengdan new energy Technology Co., LTDwith background of more than 10 years experience in lithium battery industry,The technical experience accumulation of manufacturing Li-ion battery and BMS(Battery Management System) lays a steady foundation for all-in-one Solar Energy Storage System,we specialized inportable power station OEM/DOM service for 10 years,a moder nenterprise integrating the Design Research and Development.
FAQ
1.Q:How long is the delivery time of your energy storage systems products? A:It usually takes about 40-45 days to produce an order.But the exact delivery time might be different for different orders or at different time.
2.Q:What kind of certificates your solar energy storage systems products have?
A:solar generator power station products have acquired UN38.3, CE, FCC, EMC ,UL,PSE and MSDS certificates, which is able to satisfy most country’s importing requirements.
3.Q:What can Lipower solar energy storage systems products?
A:solar power station can power most of the home appliances, it alsodepends on the output power of Lipower power stations.
4.Q:Can you supply OEM &ODM service ?
A:Yes ,as a professional manufacturer of portable power station,we offer OEM and ODM service.
5.Q:Can I customize solar energy storage systems products?
A:Yes. Let me know the specific customization requirements and I will get back to you as soon as possible.
6.Q:Can I get a solar energy storage systems sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
|
|
|
guangzhou pmd technology co ltd
Guangzhou pmd technology co ltd is dedicated in renewable energy system integration and distribution. We're the energy storage
industry's partner-of-choice for flexible, robust, reliable, and
innovative solutions guaranteed to deliver the lowest cost of
ownership. Through a continuous focus of engineered simplicity,
Enershare's battery and storage solutions optimize for efficient
installation,compatibility and high reliability.
Enershare is headquartered in Shenzhen,we have been focusing on
reliable and customized lithium battery modules, battery systems,
large scale integrated energy storage systems for years , with a
track record of 500Mwh in last three years.We have registered JV
companies in UK and Bulgaria to make sure best cost,fast delivery
and good service. Anywhere needs energy, Enershare right here!
