ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use

    Buy cheap ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use from wholesalers

    Buy cheap ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use from wholesalers
    • Buy cheap ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use from wholesalers
    • Buy cheap ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use from wholesalers
    • Buy cheap ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use from wholesalers

    ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use

    Ask Lasest Price
    Price : negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : negotiated
    • Product Details
    • Company Profile

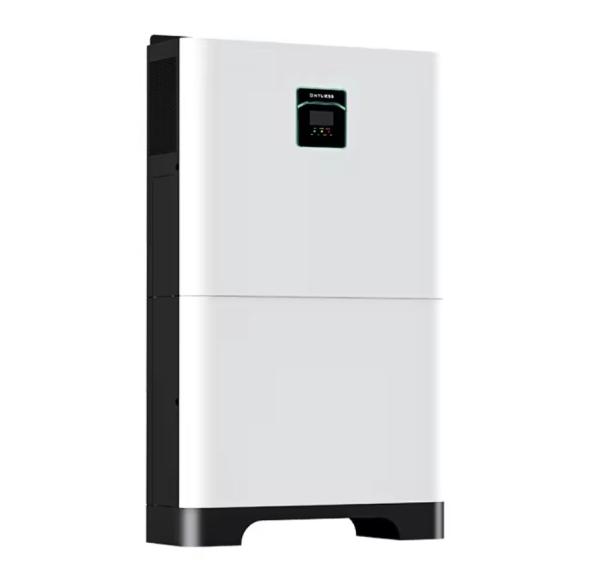

    ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use

    ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use

    Product parameters

    Model
    PMD-48100
    PMD-48150
    PMD-48200
    Standard Voltage
    48VDc
    Voltage
    37.5-54.75VDc
    Norminal Capacity
    100Ah
    150Ah
    200Ah
    Rated Capacity
    4.8kWh
    7.2kWh
    9.6kWh
    Commumication Protocol
    CAN / RS485 / WIFI / 4G / Blue Tooth
    Efficiency (at 0.5C)
    98%
    Cell Self-Discharge
    <5%/Month
    Maximum Allowed Modules in Parallet
    15 (72kWh)
    15 (108kWh)
    15 (144kWh)
    Depth of Discharge
    Up to 100%
    Useful Life
    10 Years
    Cycle Life
    6000 (@ 80% DoD)
    Protection
    Over temperature, overcurrent, short circuit, over-charging, over-discharging, Low voltage
    Recommended Charge Current
    25A
    50A
    50A
    Maximum Charge Current
    50A
    100A
    100A
    Recommended Charge Voltage
    54V
    54V
    54V
    Maximum Charge Voltage
    54.75V
    54.75V
    54.75V
    Recommended Discharge Current
    25A
    50A
    50A
    Maximum Discharge Current
    50A
    100A
    100A
    Recommended Low Voltage Disconnect
    41.25V
    Battery Low Voltage Protection
    39.75V
    Battery Recovery Voltage
    45V
    Dimenstions:
    510*440*220mm
    690*530*215mm
    690*530*215mm
    Weight
    50kgs
    70kgs
    90kgs
    Terminal Type
    M6
    Case Material
    Industrial Grade Iron
    Enclosure Protection
    IP20
    Installation
    Cabinet or Wall installation
    Cell Type Chemistry
    LiFeP04
    Certifications
    CE,FCC, CCC
    Shipping Classification
    UN 38.3. UN 3480, Class 9
    Discharge Temperature
    -20~65℃
    -20~65℃
    -20~65℃
    Charge Temperature
    0~55℃
    0~55℃
    0~55℃
    Storage Temperature
    -20~45℃
    -20~45℃
    -20~45℃

    • LCD monitor the energy storage power data and operatingstatus.
    • High-quality LiFePO4 battery, safety, deep cycle and longlifespan.
    • Product round edge be more safe, avoid accident collision.External main switch to reduce product power consumptionand improve safety.
    • Wall brackets, which can meet the installation and use ofdifferent place.
    • BMS bulit inside, over-voltage, over-load, over-temperatureprotection, etc.
    • Compatible, can be connected to different types of loadswithin the voltage range.
    • Support up to 15 modules in parallel.

    ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use

    Company Profile
    Guangzhou Pei Mengdan new energy Technology Co., LTD is a professional new energy lithium battery supplier in China. Our management team has been working in the lithium battery field for many years.We have our own professional engineer support, efficient sales team and competitive price advantage to attract customers from all over the world.Our main products are lithium batteries, lead-acid batteries, lithium battery replacing lead-acid battery, providing solutions both for energy storage.
    ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use

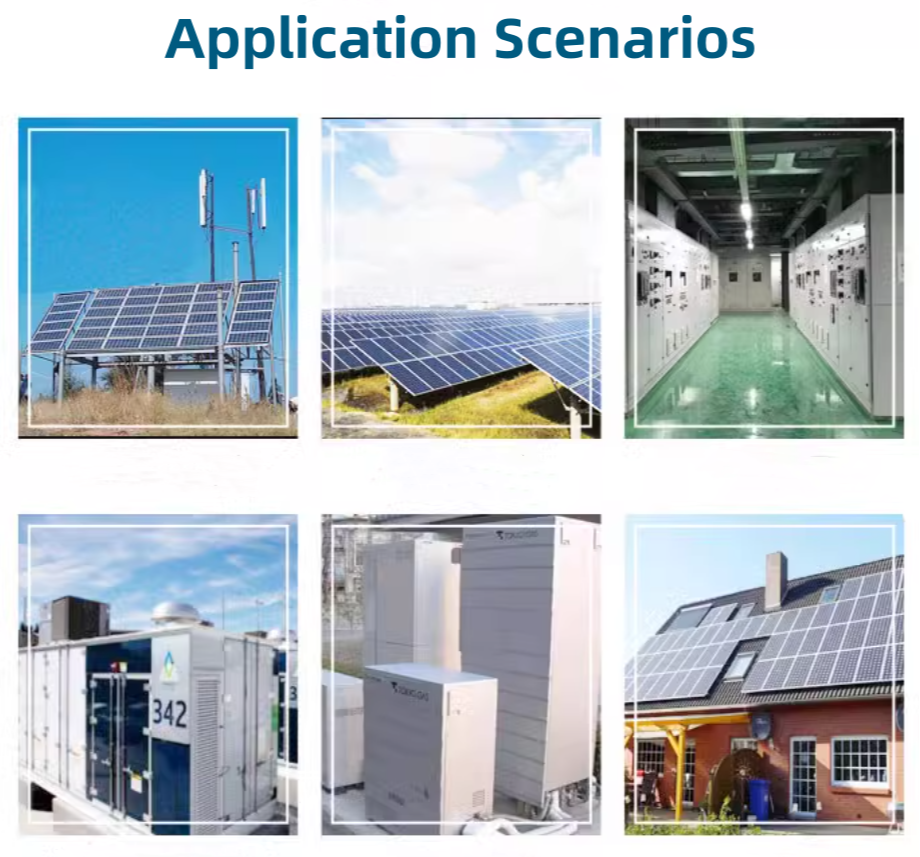

    Application

    ESS 5kwh 51.2V 100Ah 150Ah 200Ah LiFePO4 Battery Scalable Module Battery For Home Use

    Matters Needing Attention!!!
    Lithium battery precautions


    * Do not place the battery near high temperature heat sources
    * Do not charge under 0° C or sunlight

    * Do not short circuit the positive and negative terminals at the battery interfacet
    * Do not leave the battery in a wet place, in water, or in rain
    * Please do not modify or remove the battery
    * Do not drop or squeeze the battery
    * Keep out of reach of children. Store in a cool, dry place

    FAQ

    Q1: Why choose us?

    1. Before shipment, we will inspect every battery and ensure the quantity.

    2.Very competitive price offer.

    3.Better custom service, prompt reply, responsive action, more considerate.

    Q2: Can I have a sample order for test?

    Yes, we can supply samples, the lead time for samples is 15-25 days..

    Q3: Do you have any MOQ limit ?

    No limited. More quantity has better price, we will check the best price for you

    Q5: What's the payment term?

    We adopt T/T,Paypal,Western Union and so on.

    Q6:Which shipping method you usually take?

    UPS, FEDEX , Post Mail and so on. We can also ship with your own shipping agent.
